A First Look at Kubernetes DRA — Using NVIDIA DRA Driver GPU as an Example

Table of Contents

Dynamic Resource Allocation (DRA) recently reached GA in Kubernetes v1.35, and I believe many of us are eager to give it a try. Adding to the momentum, NVIDIA has moved dra-driver-nvidia-gpu into Kubernetes SIGs, with the documentation dropping the Beta label — a sign that the technology and its standards are gradually maturing.

For this post, I borrowed all the NVIDIA GPUs currently available at CNTUG Infra Labs to learn how to elegantly allocate devices and resources with DRA.

Friendly Plug: CNTUG Infra Labs
#

CNTUG Infra Labs was founded to nurture the next generation of students and engineers in Taiwan’s software infrastructure field. The lab is hosted in Equinix’s Tokyo data center and is jointly funded by several CNTUG community members. Building the environment leverages a stack of open source projects, including OpenStack, Ceph, and Ansible.

Since infrastructure software has a steep learning curve and requires substantial compute, storage, and network resources, CNTUG Infra Labs aims to provide a cloud platform where students and community members can experiment with and host related services. We hope this will attract more students to engage with — and grow in — the infrastructure space. Spare capacity is also offered to the open source community for hosting services such as websites, Mattermost, and Jitsi Meet, or for workshop events.

Many users are already actively making open source contributions through this platform — see the use cases for details.

With that, let’s get back to introducing the lab environment.

Lab Environment
#

We’ll use a Kubernetes cluster built with Cluster API + OpenStack. For brevity, the setup process is omitted here — feel free to refer to other blog posts for the details, or wait for a future post once I finish writing it up.

OS: Ubuntu 24.04
Kubernetes v1.35.3
Containerd 2.2.2
Node:
- 1 Control Plane + etcd
- 3 Workers
  - No GPU
  - T10 * 2
  - A5000 * 1
NVIDIA GPU Operator v26.3.1
NVIDIA DRA Driver GPU v25.12.0

Running kubectl get node should return something like:

NAME                                   STATUS   ROLES           AGE     VERSION
capi-dralabs-control-plane-xtcth       Ready    control-plane   8m7s    v1.35.3
capi-dralabs-md-0-p4xkh-rpfxc          Ready    <none>          6m55s   v1.35.3
capi-dralabs-md-gpua5000-jw4mx-d64jz   Ready    <none>          2m37s   v1.35.3
capi-dralabs-md-gput10-gzl84-f2m2d     Ready    <none>          6m49s   v1.35.3

Installing NVIDIA GPU Operator
#

Before installing the GPU Operator, label the Nodes that have GPUs. For my environment, this looks like:

kubectl label node capi-dralabs-md-gpua5000-jw4mx-d64jz nvidia.com/dra-kubelet-plugin=true
kubectl label node capi-dralabs-md-gput10-gzl84-f2m2d nvidia.com/dra-kubelet-plugin=true

Add the NVIDIA Chart Repo:

helm repo add nvidia https://helm.ngc.nvidia.com/nvidia
helm repo update

Create a values-gpu-operator.yaml file that we’ll use during installation:

values-gpu-operator.yaml
1# version: v26.3.1
2devicePlugin:
3  enabled: false
4
5driver:
6  manager:
7    env:
8    - name: NODE_LABEL_FOR_GPU_POD_EVICTION
9      value: "nvidia.com/dra-kubelet-plugin"

Note

If you’re using a different Kubernetes distribution (e.g., Rancher or K3s), the default Containerd installation path may differ — remember to add the following settings to values-gpu-operator.yaml:

1toolkit:
env:
- name: CONTAINERD_SOCKET
  value: /run/k3s/containerd/containerd.sock

Install NVIDIA GPU Operator:

helm upgrade --install gpu-operator nvidia/gpu-operator \
  --version=v26.3.1 \
  --create-namespace \
  --namespace gpu-operator -f values-gpu-operator.yaml

Wait for the GPU Operator to come up. It will install the NVIDIA GPU Driver and tweak the Container Runtime configuration. For specific tuning needs, refer to the NVIDIA official documentation.

Installing NVIDIA DRA Driver GPU
#

Create a values-nvidia-dra-driver-gpu.yaml file that we’ll use during installation:

values-nvidia-dra-driver-gpu.yaml
 1# version: 25.12.0
 2nvidiaDriverRoot: /run/nvidia/driver
 3gpuResourcesEnabledOverride: true
 4image:
 5  pullPolicy: IfNotPresent
 6kubeletPlugin:
 7  nodeSelector:
 8    nvidia.com/dra-kubelet-plugin: "true"
 9resources:
10  gpus:
11    enabled: true
12  computeDomains:
13    enabled: false # No NVLink here
14# featureGates:
15#   TimeSlicingSettings: true

If you’d like to try out Scenario IV’s GPU Time Slicing later, you can enable the TimeSlicingSettings Feature Gate now; otherwise, leave it commented out and helm upgrade later when needed.

Install NVIDIA DRA Driver GPU:

helm upgrade -i nvidia-dra-driver-gpu nvidia/nvidia-dra-driver-gpu \
  --version="25.12.0" \
  --namespace nvidia-dra-driver-gpu \
  --create-namespace -f values-nvidia-dra-driver-gpu.yaml

Use kubectl get pod to confirm the NVIDIA DRA Driver GPU is up:

kubectl get pod -n nvidia-dra-driver-gpu

NAME                                         READY   STATUS    RESTARTS   AGE
nvidia-dra-driver-gpu-kubelet-plugin-6skhp   1/1     Running   0          10m
nvidia-dra-driver-gpu-kubelet-plugin-jswk6   1/1     Running   0          10m

A First Look at DRA
#

DeviceClass
#

Once installed, you’ll find that DeviceClass and ResourceSlice have been set up by NVIDIA DRA Driver GPU. As the name suggests, DeviceClass represents categories of devices — opening it up reveals regular GPUs, MIG, and VFIO. (If ComputeDomains isn’t disabled, you’ll also see ComputeDomains information.)

kubectl get deviceclass

DeviceClass example output
NAME                  AGE
gpu.nvidia.com        44m
mig.nvidia.com        44m
vfio.gpu.nvidia.com   44m

ResourceSlice
#

ResourceSlice is automatically updated by the DRA driver on each node, recording all devices the driver manages on that node.

Devices on the same node managed by the same driver belong to the same Pool. When the device count exceeds what fits in a single object (up to 128 entries, or 64 if any device uses taints or counters), the driver splits the Pool across multiple ResourceSlices.

.spec.pool.generation and .spec.pool.resourceSliceCount let the scheduler determine whether it has the complete and latest device list for a given node.

kubectl get resourceslice

ResourceSlice example output
NAME                                                        NODE                                   DRIVER           POOL                                   AGE
capi-dralabs-md-gpua5000-jw4mx-d64jz-gpu.nvidia.com-w9fnv   capi-dralabs-md-gpua5000-jw4mx-d64jz   gpu.nvidia.com   capi-dralabs-md-gpua5000-jw4mx-d64jz   5m13s
capi-dralabs-md-gput10-gzl84-f2m2d-gpu.nvidia.com-dtgtc     capi-dralabs-md-gput10-gzl84-f2m2d     gpu.nvidia.com   capi-dralabs-md-gput10-gzl84-f2m2d     23m

You can expand the full content with -o yaml:

kubectl get resourceslices -o yaml

Click the panel below to see the full output. Each ResourceSlice records its node in .metadata.ownerReferences and the devices in .spec.devices. Every device carries .attributes including (but not limited to) architecture, product name, and driver version.

Since each node in this lab has at most 2 GPUs — far below a single ResourceSlice’s 128-entry limit — every node only shows one ResourceSlice.

Full ResourceSlice output

  1apiVersion: v1
  2items:
  3- apiVersion: resource.k8s.io/v1
kind: ResourceSlice
metadata:
  creationTimestamp: "2026-05-04T14:40:17Z"
  generateName: capi-dralabs-md-gpua5000-jw4mx-d64jz-gpu.nvidia.com-
  generation: 1
  name: capi-dralabs-md-gpua5000-jw4mx-d64jz-gpu.nvidia.com-w9fnv
  ownerReferences:
  - apiVersion: v1
    controller: true
    kind: Node
    name: capi-dralabs-md-gpua5000-jw4mx-d64jz
    uid: 83aafab6-7eb3-42d0-9faf-6118f78341ef
  resourceVersion: "11490"
  uid: d03fd27e-f6cb-4386-ae61-80aa84309e77
spec:
  devices:
  - attributes:
      addressingMode:
        string: HMM
      architecture:
        string: Ampere
      brand:
        string: NvidiaRTX
      cudaComputeCapability:
        version: 8.6.0
      cudaDriverVersion:
        version: 13.0.0
      driverVersion:
        version: 580.126.20
      productName:
        string: NVIDIA RTX A5000
      resource.kubernetes.io/pciBusID:
        string: "0000:00:06.0"
      resource.kubernetes.io/pcieRoot:
        string: pci0000:00
      type:
        string: gpu
      uuid:
        string: GPU-e13ce856-7474-797f-d143-16e99b65c0c3
    capacity:
      memory:
        value: 23028Mi
    name: gpu-0
  driver: gpu.nvidia.com
  nodeName: capi-dralabs-md-gpua5000-jw4mx-d64jz
  pool:
    generation: 1
    name: capi-dralabs-md-gpua5000-jw4mx-d64jz
    resourceSliceCount: 1
 53- apiVersion: resource.k8s.io/v1
kind: ResourceSlice
metadata:
  creationTimestamp: "2026-05-04T14:21:53Z"
  generateName: capi-dralabs-md-gput10-gzl84-f2m2d-gpu.nvidia.com-
  generation: 1
  name: capi-dralabs-md-gput10-gzl84-f2m2d-gpu.nvidia.com-dtgtc
  ownerReferences:
  - apiVersion: v1
    controller: true
    kind: Node
    name: capi-dralabs-md-gput10-gzl84-f2m2d
    uid: d7ecdc93-1d6c-4868-8503-4251bcf8cf3b
  resourceVersion: "7408"
  uid: 66f32713-c547-4369-84de-97f86430d18d
spec:
  devices:
  - attributes:
      addressingMode:
        string: HMM
      architecture:
        string: Turing
      brand:
        string: Nvidia
      cudaComputeCapability:
        version: 7.5.0
      cudaDriverVersion:
        version: 13.0.0
      driverVersion:
        version: 580.126.20
      productName:
        string: Tesla T10
      resource.kubernetes.io/pciBusID:
        string: "0000:00:06.0"
      resource.kubernetes.io/pcieRoot:
        string: pci0000:00
      type:
        string: gpu
      uuid:
        string: GPU-dae084a2-974c-00e2-6dec-4ba1999b8652
    capacity:
      memory:
        value: 16Gi
    name: gpu-0
  - attributes:
      addressingMode:
        string: HMM
      architecture:
        string: Turing
      brand:
        string: Nvidia
      cudaComputeCapability:
        version: 7.5.0
      cudaDriverVersion:
        version: 13.0.0
      driverVersion:
        version: 580.126.20
      productName:
        string: Tesla T10
      resource.kubernetes.io/pciBusID:
        string: "0000:00:07.0"
      resource.kubernetes.io/pcieRoot:
        string: pci0000:00
      type:
        string: gpu
      uuid:
        string: GPU-d1bf2033-42f6-096c-b0c6-470575bc08df
    capacity:
      memory:
        value: 16Gi
    name: gpu-1
  driver: gpu.nvidia.com
  nodeName: capi-dralabs-md-gput10-gzl84-f2m2d
  pool:
    generation: 1
    name: capi-dralabs-md-gput10-gzl84-f2m2d
    resourceSliceCount: 1
130kind: List
131metadata:
resourceVersion: ""

With this information, how does a Pod tell Kubernetes which devices it wants? That’s where ResourceClaim and ResourceClaimTemplate come in!

ResourceClaim & ResourceClaimTemplate
#

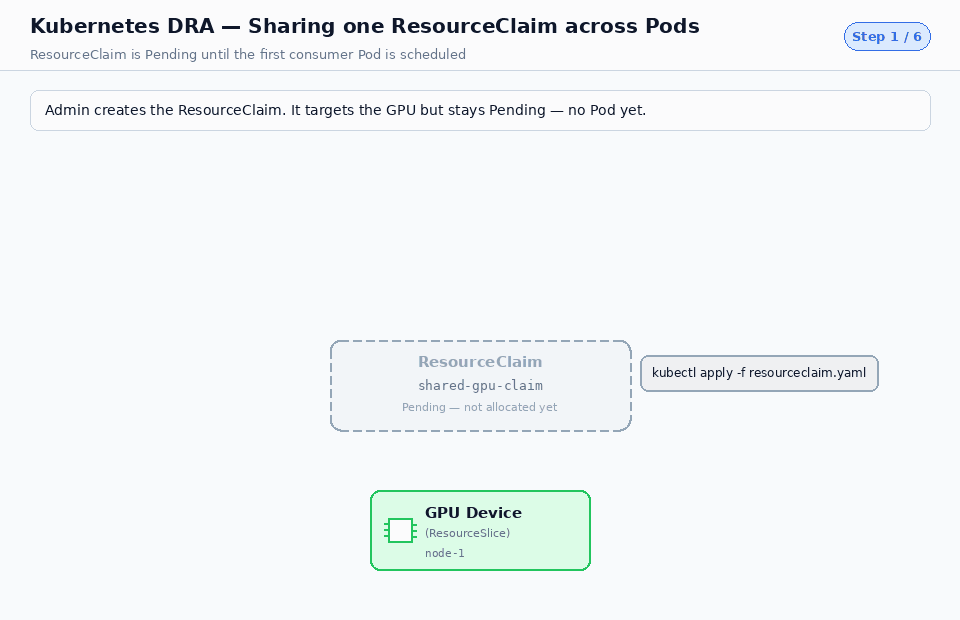

If you’d like multiple Pods to share the same device, you can manually create a ResourceClaim. It stays fully independent regardless of Pod creation or deletion.

What if you want each Pod to have its own dedicated device? ResourceClaimTemplate lets you predefine a ResourceClaim. Once a Deployment references the template by name, every new Pod automatically gets a corresponding ResourceClaim; conversely, deleting the Pod removes its claim.

Do these concepts feel familiar? DRA is modeled after Storage in Kubernetes — PersistentVolumeClaim and PersistentVolumeClaimTemplate (the latter only existing inside StatefulSet), with DeviceClass playing roughly the role of StorageClass.

Hands-On with DRA
#

Scenario I: Two Containers Sharing One GPU
#

Use a ResourceClaim to declare that we need one NVIDIA GPU, then run a Pod with two containers that share it.

lab01-rc.yaml
 1apiVersion: resource.k8s.io/v1
 2kind: ResourceClaim
 3metadata:
 4  name: must-nvidia-gpu
 5spec:
 6  devices:
 7    requests:
 8    - name: gpu
 9      exactly:
10        deviceClassName: gpu.nvidia.com
11        count: 1

Apply the resource:

kubectl apply -f lab01-rc.yaml

Use get to inspect the ResourceClaim:

kubectl get resourceclaim

The status is pending because no Pod is consuming it yet.

NAME              STATE     AGE
must-nvidia-gpu   pending   10s

Now define a Pod with two containers, both referencing the must-nvidia-gpu ResourceClaim we just created.

lab01-pod.yaml
 1apiVersion: v1
 2kind: Pod
 3metadata:
name: must-nvidia-gpu-pod
 5spec:
restartPolicy: Never
containers:
- name: ctr0
  image: ubuntu:24.04
  command: ["bash", "-c"]
  args: ["nvidia-smi -L; trap 'exit 0' TERM; sleep 9999 & wait"]
  resources:
    claims:
    - name: gpu
- name: ctr1
  image: ubuntu:24.04
  command: ["bash", "-c"]
  args: ["nvidia-smi -L; trap 'exit 0' TERM; sleep 9999 & wait"]
  resources:
    claims:
    - name: gpu
resourceClaims:
- name: gpu
  resourceClaimName: must-nvidia-gpu

Apply the Pod:

kubectl apply -f lab01-pod.yaml

Check the ResourceClaim again:

kubectl get resourceclaim

The status changes to allocated and reserved because a Pod is now using the resource.

NAME              STATE                AGE
must-nvidia-gpu   allocated,reserved   16s

Now we can use logs to print the output:

kubectl logs pod must-nvidia-gpu-pod --all-containers --prefix

[pod/must-nvidia-gpu-pod/ctr0] GPU 0: Tesla T10 (UUID: GPU-dae084a2-974c-00e2-6dec-4ba1999b8652)
[pod/must-nvidia-gpu-pod/ctr1] GPU 0: Tesla T10 (UUID: GPU-dae084a2-974c-00e2-6dec-4ba1999b8652)

In practice, it might not be a T10 — it could just as easily be an A5000.

Now delete the Pod:

kubectl delete -f lab01-pod.yaml

Check the ResourceClaim once more:

kubectl get resourceclaim

The status returns to pending because no Pod is using the resource anymore.

NAME              STATE     AGE
must-nvidia-gpu   pending   3m39s

Delete the ResourceClaim:

kubectl delete -f lab01-rc.yaml

The example above only asked for one GPU but didn’t tell us which one we’d get.

This scenario isn’t all that different from the original Device Plugin, right? The next scenarios are where DRA truly shines!

Scenario II: ResourceClaimTemplate — Prefer A5000 in a Deployment
#

Today, an engineer asks me for an inference model that prefers the A5000, but since A5000s are scarce, they’re fine falling back to T10 when scaling up.

Beyond exactly, ResourceClaim also supports firstAvailable for ranked preferences. Going back to the full ResourceSlice output, we can target GPUs by name using .attributes.productName.

The configuration looks like this:

lab02.yaml
 1apiVersion: resource.k8s.io/v1
 2kind: ResourceClaimTemplate
 3metadata:
name: first-a5000
 5spec:
spec:
  devices:
    requests:
    - name: gpu
      firstAvailable:
      - name: a5000
        deviceClassName: gpu.nvidia.com
        selectors:
        - cel:
            expression: device.attributes["gpu.nvidia.com"].productName == "NVIDIA RTX A5000"
      - name: fallback-t10
        deviceClassName: gpu.nvidia.com
        selectors:
        - cel:
            expression: device.attributes["gpu.nvidia.com"].productName == "Tesla T10"
21---
22apiVersion: apps/v1
23kind: Deployment
24metadata:
name: first-a5000-deploy
labels:
  app: first-a5000-deploy
28spec:
replicas: 1
selector:
  matchLabels:
    app: first-a5000-deploy
template:
  metadata:
    labels:
      app: first-a5000-deploy
  spec:
    containers:
    - name: ctr0
      image: ubuntu:24.04
      command: ["bash", "-c"]
      args: ["nvidia-smi -L; trap 'exit 0' TERM; sleep 9999 & wait"]
      resources:
        claims:
        - name: gpu
    resourceClaims:
    - name: gpu
      resourceClaimTemplateName: first-a5000

Save the above as lab02.yaml and apply it:

kubectl apply -f lab02.yaml

Confirm the Pod is Running and use the nvidia-smi -L output to verify it got the A5000:

kubectl get pod
kubectl logs deployments/first-a5000-deploy --all-pods

NAME                                 READY   STATUS    RESTARTS   AGE
first-a5000-deploy-8c6cf4568-2lsv9   1/1     Running   0          9s

[pod/first-a5000-deploy-8c6cf4568-2lsv9/ctr0] GPU 0: NVIDIA RTX A5000 (UUID: GPU-e13ce856-7474-797f-d143-16e99b65c0c3)

Now scale up to 2 replicas to see which GPU the new Pod gets:

kubectl scale deployment first-a5000-deploy --replicas 2
kubectl logs deployments/first-a5000-deploy --all-pods

[pod/first-a5000-deploy-8c6cf4568-2lsv9/ctr0] GPU 0: NVIDIA RTX A5000 (UUID: GPU-e13ce856-7474-797f-d143-16e99b65c0c3)
[pod/first-a5000-deploy-8c6cf4568-865jj/ctr0] GPU 0: Tesla T10 (UUID: GPU-dae084a2-974c-00e2-6dec-4ba1999b8652)

The first Pod has taken the only A5000, so the second Pod falls back to T10 — exactly the expected behavior of firstAvailable when the top choice is unavailable.

We can also see the corresponding ResourceClaims:

kubectl get resourceclaim

NAME                                           STATE                AGE
first-a5000-deploy-8c6cf4568-2lsv9-gpu-bdz9j   allocated,reserved   4m29s
first-a5000-deploy-8c6cf4568-865jj-gpu-mqfcx   allocated,reserved   3m29s

If we delete the A5000 Pod, will the rebuilt Pod return to A5000?

With the configuration above, no, it won’t return to A5000. The Deployment default strategy.type is RollingUpdate; while the old Pod is Terminating, its ResourceClaim hasn’t been released yet.
The Deployment controller immediately creates a new Pod and a new ResourceClaim from the ResourceClaimTemplate. Since the A5000 is still held by the old Pod, the new claim falls back to T10.

Finally, clean up:

kubectl delete -f lab02.yaml

Scenario III: GPUs With at Least 20 GiB of Memory
#

Today an engineer wants to deploy an LLM that needs a single GPU with at least 20 GiB of memory. Since it’s still in testing, compute requirements are flexible — any available GPU meeting the memory threshold will do.

Beyond .attributes, we can also use .capacity.memory. How do we express comparison rules? Take a look at line 15:

lab03.yaml
 1apiVersion: resource.k8s.io/v1
 2kind: ResourceClaimTemplate
 3metadata:
name: gt20g
 5spec:
spec:
  devices:
    requests:
    - name: gpu
      firstAvailable:
      - name: gt20g
        deviceClassName: gpu.nvidia.com
        selectors:
        - cel:
            expression: device.capacity["gpu.nvidia.com"].memory.isGreaterThan(quantity("20Gi"))
16---
17apiVersion: apps/v1
18kind: Deployment
19metadata:
name: gt20g-deploy
labels:
  app: gt20g-deploy
23spec:
replicas: 1
selector:
  matchLabels:
    app: gt20g-deploy
template:
  metadata:
    labels:
      app: gt20g-deploy
  spec:
    containers:
    - name: ctr0
      image: ubuntu:24.04
      command: ["bash", "-c"]
      args: ["nvidia-smi -L; trap 'exit 0' TERM; sleep 9999 & wait"]
      resources:
        claims:
        - name: gpu
    resourceClaims:
    - name: gpu
      resourceClaimTemplateName: gt20g

We use CEL’s isGreaterThan(quantity("20Gi")) to require more than 20 GiB.

Apply the YAML:

kubectl apply -f lab03.yaml

Confirm the Pod is Running and that we got the A5000:

kubectl get pod
kubectl logs deployments/gt20g-deploy --all-pods

NAME                           READY   STATUS    RESTARTS   AGE
gt20g-deploy-5ff576476-hdz8f   1/1     Running   0          5m16s

[pod/gt20g-deploy-5ff576476-hdz8f/ctr0] GPU 0: NVIDIA RTX A5000 (UUID: GPU-e13ce856-7474-797f-d143-16e99b65c0c3)

Now let’s see what happens when we scale up:

kubectl scale deployment gt20g-deploy --replicas 2

After scaling, check whether a new Pod was added:

kubectl get pod

NAME                           READY   STATUS    RESTARTS   AGE
gt20g-deploy-5ff576476-hdz8f   1/1     Running   0          8m9s
gt20g-deploy-5ff576476-vjss8   0/1     Pending   0          26s

Run describe on the gt20g-deploy-5ff576476-vjss8 Pod:

kubectl describe pod gt20g-deploy-5ff576476-vjss8

Events:
  Type     Reason            Age   From               Message
  ----     ------            ----  ----               -------
  Warning  FailedScheduling  98s   default-scheduler  0/4 nodes are available: 1 node(s) had untolerated taint(s), 3 cannot allocate all claims. still not schedulable, preemption: 0/4 nodes are available: 4 Preemption is not helpful for scheduling.

Since there’s no other GPU with at least 20 GiB of memory in the cluster — the T10 has only 16 GiB — the new Pod is stuck in Pending.

Clean up the resources:

kubectl delete -f lab03.yaml

For more sophisticated matching logic, see CEL in Kubernetes.

Scenario IV: GPU Time Slicing in DRA
#

Warning

As of 2026/5/10, neither the NVIDIA official documentation nor the NVIDIA DRA Driver GPU wiki contains any tutorial on Time Slicing.
The configuration below is adapted from demo/specs/quickstart/v1/gpu-test5.yaml, supplemented by reading parts of the source code; the Feature Gate part draws from third-party articles.
The setup may change in future releases — keep that in mind!

Today, an engineer comes back to me asking: “I know DRA is great for resource allocation, but is there a way to fall back to Time Slicing mode?”

Want to go back to the old mode? Nooo… problem at all!

Just specify the device under .spec.devices.config and switch the sharing strategy to TimeSlicing. Here’s an example:

lab04.yaml
 1apiVersion: resource.k8s.io/v1
 2kind: ResourceClaim
 3metadata:
name: time-slicing-manual
 5spec:
devices:
  requests:
  - name: ts-gpu
    exactly:
      deviceClassName: gpu.nvidia.com
  config:
  - requests: ["ts-gpu"]
    opaque:
      driver: gpu.nvidia.com
      parameters:
        apiVersion: resource.nvidia.com/v1beta1
        kind: GpuConfig
        sharing:
          strategy: TimeSlicing
          timeSlicingConfig:
            interval: Long
22---
23apiVersion: apps/v1
24kind: Deployment
25metadata:
name: ts-gpu-deployment
27spec:
replicas: 4
selector:
  matchLabels:
    app: ts-gpu
template:
  metadata:
    labels:
      app: ts-gpu
  spec:
    containers:
    - name: ctr
      image: nvcr.io/nvidia/k8s/cuda-sample:nbody-cuda11.6.0-ubuntu18.04
      command: ["bash", "-c"]
      args: ["trap 'exit 0' TERM; /tmp/sample --benchmark --numbodies=4226000 & wait"]
      resources:
        claims:
        - name: gpu
    resourceClaims:
    - name: gpu
      resourceClaimName: time-slicing-manual

Save the above as lab04.yaml and apply it:

kubectl apply -f lab04.yaml

Verify all the Pods are running:

kubectl get pod

NAME                                 READY   STATUS    RESTARTS   AGE
ts-gpu-deployment-549c945798-6t2dx   1/1     Running   0          4s
ts-gpu-deployment-549c945798-tlgp4   1/1     Running   0          4s
ts-gpu-deployment-549c945798-x2gbv   1/1     Running   0          4s
ts-gpu-deployment-549c945798-xbv22   1/1     Running   0          4s

Since all 4 Pods share the same ResourceClaim, kubectl get resourceclaim returns only a single entry — which itself is evidence that they’re sharing:

kubectl get resourceclaim

NAME                  STATE                AGE
time-slicing-manual   allocated,reserved   30s

Drill in with describe and you’ll see all 4 Pods listed under Reserved For:

kubectl describe resourceclaim time-slicing-manual

Status:
  Allocation:
    Devices:
      Config:
        Opaque:
          Driver:  gpu.nvidia.com
          Parameters:
            API Version:  resource.nvidia.com/v1beta1
            Kind:         GpuConfig
            Sharing:
              Strategy:  TimeSlicing
              Time Slicing Config:
                Interval:  Long
        Requests:
          ts-gpu
        Source:  FromClaim
      Results:
        Device:   gpu-0
        Driver:   gpu.nvidia.com
        Pool:     capi-dralabs-md-gpua5000-jw4mx-d64jz
        Request:  ts-gpu
    Node Selector:
      Node Selector Terms:
        Match Fields:
          Key:       metadata.name
          Operator:  In
          Values:
            capi-dralabs-md-gpua5000-jw4mx-d64jz
  Reserved For:
    Name:      ts-gpu-deployment-549c945798-x2gbv
    Resource:  pods
    UID:       be21eecf-2d58-4891-9cac-ac3674f4ff09
    Name:      ts-gpu-deployment-549c945798-6t2dx
    Resource:  pods
    UID:       37d504a0-966e-4263-9fcd-b713d73c0e77
    Name:      ts-gpu-deployment-549c945798-xbv22
    Resource:  pods
    UID:       2b5ec297-9889-4cb9-8079-b626a854b292
    Name:      ts-gpu-deployment-549c945798-tlgp4
    Resource:  pods
    UID:       ee836856-8c6b-4161-9582-4bc4ff63a606

That’s how Time Slicing is enabled under DRA — the effect is similar to the legacy Device Plugin’s Time Slicing mode, except we don’t need to specify how many slices to divide into. We just configure timeSlicingConfig and its interval.

Finally, clean up the resources:

kubectl delete -f lab04.yaml

Summary
#

Compared to the Device Plugin, DRA now offers a much cleaner usage model that lets developers and cluster admins allocate devices more precisely. There’s no longer a need to colocate the same kind of device on the same node, nor to write complex rules in nodeSelector or Affinity.

Starting with K8s v1.36, device health reporting is also available, so Pods no longer simply show Error — we can tell whether the failure stems from the device or from the application.

Previously, when a K8s cluster ran low on CPU or memory, Cluster Autoscaler could spin up new machines. In the future, the same may apply to GPU shortages — Cluster Autoscaler may provision GPU nodes on demand, enabling more efficient resource allocation.

Closing Thoughts
#

A couple of years ago I bought an A5000 for some testing needs and parked it at Infra Labs, but it felt like a waste that the card sat there with no further experiments — and being too busy, it kept on collecting dust and consuming power in the machine room.

When dra-driver-nvidia-gpu made it into Kubernetes SIGs, I remembered that the lab also has two T10 cards available, which became the catalyst for this lab.

I’ve also been watching the rise of various AI Gateways, plus the Gateway API extension — Gateway API Inference Extension. I’ll write about those some other time!

Friendly Plug: CNTUG Infra Labs#

Lab Environment#

Installing NVIDIA GPU Operator#

Installing NVIDIA DRA Driver GPU#

A First Look at DRA#

DeviceClass#

ResourceSlice#

ResourceClaim & ResourceClaimTemplate#

Hands-On with DRA#

Scenario I: Two Containers Sharing One GPU#

Scenario II: ResourceClaimTemplate — Prefer A5000 in a Deployment#

Scenario III: GPUs With at Least 20 GiB of Memory#

Scenario IV: GPU Time Slicing in DRA#

Summary#

Closing Thoughts#

Related
